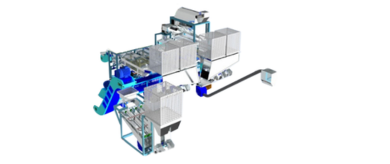

CASHEW SCOOPING SYSTEM (for 1 cutter) 01SCGB
- FOB Ho Chi Minh
- Machine code : 01SCGB
- Size ( L*W*H) : 7.0m.2.5m*3.5m
- Electric consumption : 16kw/3 phases/ 380V
Description
- FOB Ho Chi Minh
- Machine code : 01SCGB
- Size ( L*W*H) : 7.0m.2.5m*3.5m
- Electric consumption : 16kw/3 phases/ 380V
| Grade | Capacity (kgs/h) |
| A (A+, A1, A2) | 1200 |
| B (B1, B2) | 1000 |
| C | 800 |
| D | 600 |
Cargo description :
- Handle system in monolithic, it makes easier for transportation, installation and using
- Frame material : Box steel frame 50mm*100mm, 40mm*80mm, 2.5mm thickness
- Grid material : Stain steel 304, 2.5mm thickness
| Raw cashew nut grades | Grid diameter (mm) |
| A+, A1 | 18 |
| A2 | 16.5 |
| B | 15.5 |
| C | 14.5 |
| D | 13.5 |
- Handle system ingredients
| No | Ingredients | Quantity |
| 1 | Filter system 1 | 1 |
| 2 | Filter system 2 | 1 |
| 3 | Scrolling case | 1 |
| 4 | Centifugal | 2 |
| 5 | Scrolling table | 1 |
| 6 | Shell blowing system | 2 |
| 7 | Blowing centifugal system | 2 |
| 8 | Blowing case system | 1 |
| 9 | Conveyor system | 1 |
- HS Code : 84378059
- Guarantee in one year ( except ball bearing, belt driver, abrasion parts and motor caused issues from losing phase
