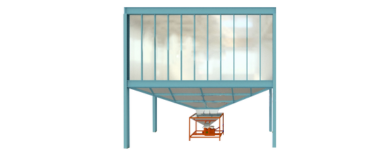

SPREADING FRESH KERNEL BORMA TANK TANK8TP
- Capacity : 5 tons
- Tank designed as module, connect each other by screw, easy for transportation and installation
- HS code : 73090099
Description
- FOB HoChiMinh,
- Cargo code: TANK8TP
- Size: (L*W*H) 4.0m*2.5m*4.0m
- Electric consumption: 0.4kw/ 3 phases/ 380V
| No | Ingredients | Qnt | Information |
| 1 | Tank Pillar | 4 | Made by box steel 100mm*100mm, 3mm thickness, 4.0m length |
| 2 | Surround wall Size (L*H) 2.0m*2.0m |
4 | -Main frame made by box steel 40mm*80mm, 1.8mm thickness -Supported frame made by box steel 40mm*40mm, 1.4mm thickness distance each frame 600mm -Wall made by stain steel 1.2mm thickness |
| 3 | Separation wall Size (L*W) 2.3m*2.0m |
3 | -Main frame made by box steel 40mm*80mm, 1.8mm thickness -Supported frame made by box steel 40mm*40mm, 1.4mm thickness -Wall made by stain steel 1.2mm thickness |
| 4 | Funnel | 1 | Funnel made by stain steel sheet 2.5mm thickness, ledge supported, drilling oval hole, connecting by screw |
| 5 | Kernel transporting conveyor Size (L*W*H) 4000mm*600mm *900mm |
1 | Frame made by sheet stain steel mold box supported, scrolling pivot Φ114 Conveyor made by PVC plastic |
| 6 | Vibration motor | 1 | Spreading fresh kernel to borma troley’s tray |
| 7 | Electric cabinet | 1 | Electric cabinet made in Vietnam, inside equipment made by LG, connecting motor conveyor and motor vibration tray, controlling function |
Cargo description :
- Capacity : 5 tons
- Tank designed as module, connect each other by screw, easy for transportation and installation
- HS code : 73090099
Technical guarantee : 1 year
